डबल एंडेड बोल्ट
>
A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

ब्रांड नाम: FLRS or OEM
मॉडल संख्या: FLRS-S025
एमओक्यू: 1 टुकड़ा
कीमत: usd0.1-15 per pc
पैकेजिंग विवरण: गत्ते का डिब्बा/प्लाईवुड मामलों/प्लाईवुड फूस
भुगतान की शर्तें: टी/टी, एल/सी, वेस्टर्न यूनियन, पेपैल
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO9001
नाम:
कील वाला बोल्ट
सामग्री:
ए193 बी7/ ए194 2एच
मानक:
एएनएसआई / ASME
खत्म करना:
पीटीएफई
धागा:
यूएनसी
रंग:
नीला
आपूर्ति की क्षमता:
60 टन/माह
उत्पाद का वर्णन

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


XYLAN:

It is a registered trademark of high-performance fluoropolymer coatings manufactured by Whitford Corporation (USA). It is a PTFE-based anti-corrosion coating system. After proper surface pretreatment, the coating is sprayed onto metal substrates and thermally cured to form a protective film. It delivers outstanding metal protection featuring superior resistance to chemical corrosion and comprehensive functional advantages.

Data Sheet:

Standard ANSI/ASME
Size Standard & non-standard, customized
Material Carbon Steel, Stainless Steel and Alloy Steel
Grade A193 B7 / A194 2H
Thread UNC
Finish PTFE coating
Packing Bulk in cartons on wood pallet or according to customer special demand.
Application Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Supply Ability About 60 tons per month
MOQ 50pcs
Trade Term FOB/CIF/CFR/EXW/DAP
Payment T/T,  L/C , Western Union


Picture:

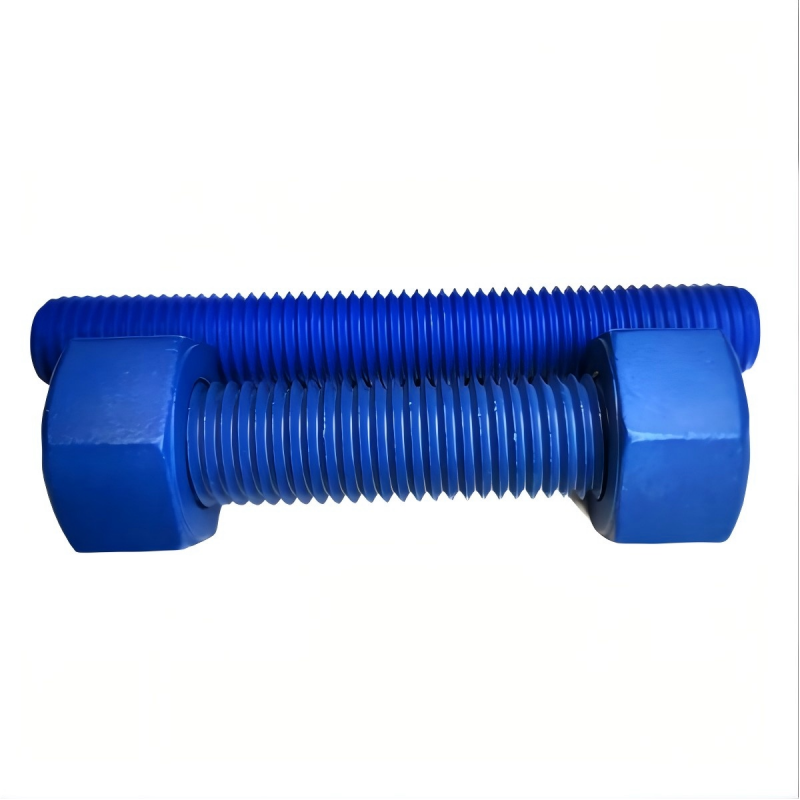

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


Technical specifications:

Dry Film Thickness fasteners : 20-25microns
Structural Components : 20-30microns
Reduces make up torque:  70%
Coefficient of Friction:  0.08-0.11
Basecoat bond strength: 4000Psi
Topcoat Pencil hardness:  3-8H
Adhesion Standard :ASTM D3359:  4B,5B
Available Colors:Blue, Red, Yellow, Green
Operating Temperature Range:  -195℃ to +260℃
